When you embark on landscaping, construction, or drainage projects, one material that frequently comes up is geotextile fabric. This versatile fabric offers a host of benefits that can significantly improve the durability and performance of your project. Whether you’re working on erosion control, creating drainage systems, or stabilizing soil, understanding how to apply geotextile fabric is key to achieving lasting results.
What is Geotextile Fabric?
Geotextile fabric is a synthetic material used primarily in civil engineering, landscaping, and construction projects. It is designed to improve the performance of soil by providing separation, filtration, reinforcement, and drainage. Geotextile fabric is made from various materials, such as polyester, polypropylene, or other polymers, and is available in different forms, including woven, non-woven, and knitted varieties.
In a nutshell, geotextile fabric acts as a filter to separate different materials while allowing the passage of water, making it ideal for preventing soil erosion and managing drainage issues.
Why Is Proper Application Important?
The key to getting the full benefit of geotextile fabric lies in proper application. If applied incorrectly, the fabric may not provide adequate support or drainage, leading to project failure. Here’s why applying it correctly matters:
- Prevents Soil Erosion: Geotextile fabric stabilizes the soil and prevents it from washing away, especially on slopes or near water sources.
- Enhances Drainage: Proper installation allows the fabric to filter water while blocking the passage of soil, reducing waterlogging and increasing drainage efficiency.
- Increases Durability: A properly applied geotextile fabric can significantly extend the lifespan of roads, retaining walls, or any structure it supports by preventing soil shifting and improving structural integrity.
- Cost-Effective: When done right, the application of geotextile fabric reduces maintenance costs and extends the life of your infrastructure, whether in landscaping or construction.
What Are the Different Types of Geotextile Fabrics?
Understanding the different types of geotextile fabrics available will help you choose the right one for your project and apply it effectively. Each type of geotextile fabric serves a unique purpose, and selecting the right one ensures maximum performance and durability. Here’s a detailed breakdown of the most common types:

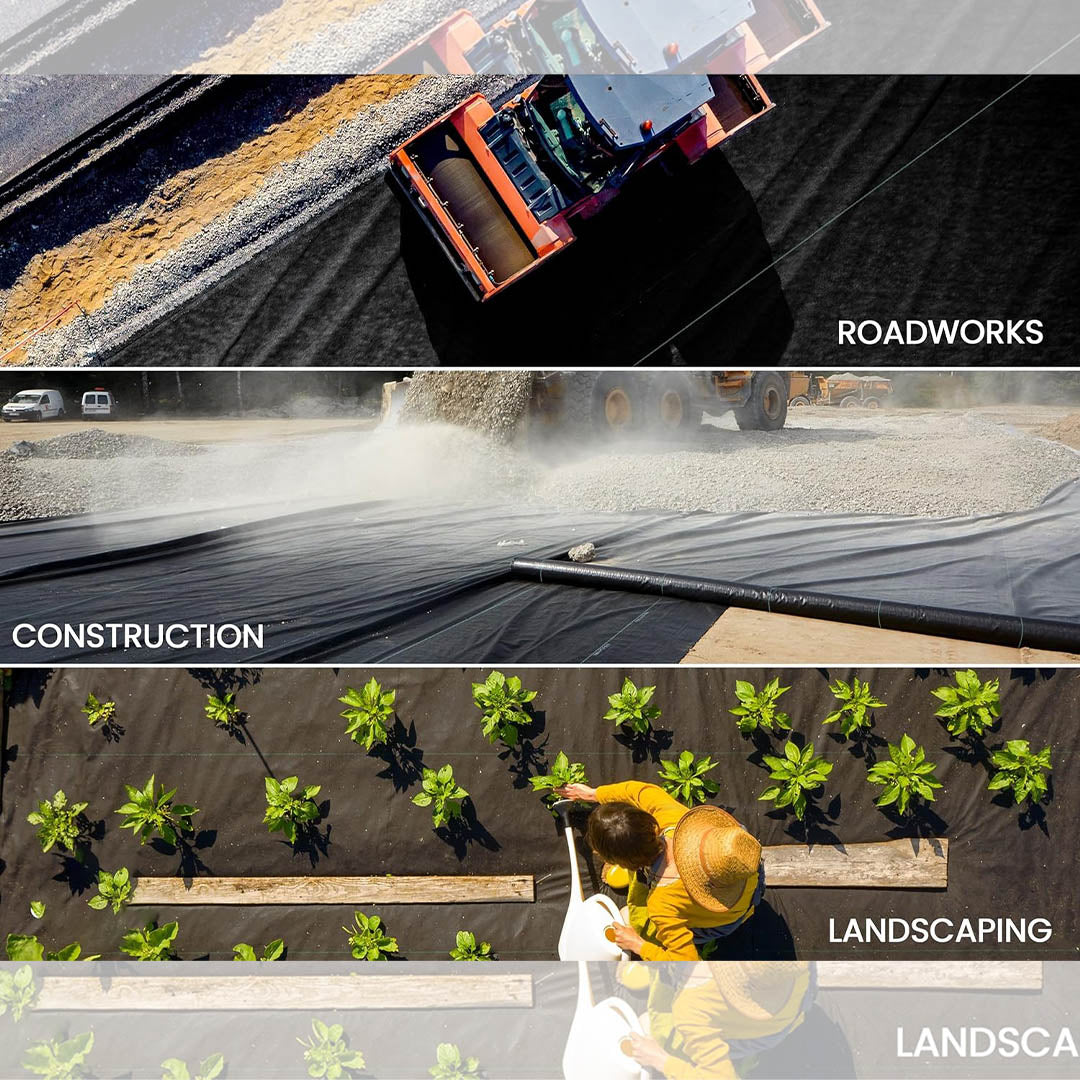

1. Woven Geotextiles
Woven geotextiles are made by weaving synthetic fibers together, creating a fabric that is relatively strong and durable. These geotextiles are primarily used for reinforcement and separation purposes, making them ideal for road construction, railway construction, and heavy-duty applications.
- Applications:
- Soil reinforcement and stabilization.
- Separation of sub-base and base materials in roads or railways.
- Used in landscaping to reinforce soil and prevent soil mixing.
- Advantages:
- High tensile strength, making them ideal for supporting heavy loads.
- Good resistance to wear and tear, especially in high-traffic areas.
- Considerations:
- Less effective in filtration applications compared to non-woven fabrics because they have limited permeability.
2. Non-Woven Geotextiles
Non-woven geotextiles are made by bonding synthetic fibers through mechanical, chemical, or thermal processes. Unlike woven fabrics, non-woven fabrics do not have a regular pattern, which gives them greater permeability and better drainage properties.
- Applications:
- Filtration and drainage in systems like French drains, ditches, and landfills.
- Used in erosion control, especially in areas prone to high water flow.
- Separation layers in drainage and filtration systems.
- Advantages:
- Better water flow and drainage properties due to their high permeability.
- More flexible and easier to install in irregularly shaped areas.
- Considerations:
- Not as strong as woven geotextiles, so they are not suitable for heavy-duty reinforcement.
3. Knitted Geotextiles
Knitted geotextiles are created by interlocking threads through a knitting process. These fabrics have a unique combination of strength, flexibility, and permeability.
- Applications:
- Used in applications where a high level of flexibility is required, such as in erosion control projects on slopes.
- Sometimes used in drainage systems and landfills where the fabric needs to be both permeable and strong.
- Advantages:
- Excellent flexibility and elongation properties.
- Strong enough for moderate reinforcement tasks.
- Considerations:
- Not as commonly available as woven or non-woven fabrics, making them harder to find in some regions.
Summary of Differences:
| Type | Strength | Permeability | Best Use |
|---|---|---|---|
| Woven | High | Low | Reinforcement, separation in road/rail construction |
| Non-Woven | Moderate | High | Filtration, drainage, erosion control |
| Knitted | Moderate to High | Moderate | Flexibility and reinforcement in moderate conditions |
Where Do You Apply Geotextile Fabric?
Geotextile fabric is incredibly versatile and can be applied across a wide range of landscaping, construction, and drainage applications. Let’s dive into the most common places where geotextile fabric is used:
1. Landscaping Applications
- Erosion Control on Slopes: Geotextile fabric is widely used to prevent soil erosion in areas where the ground is at a slope, such as hillsides, riverbanks, or coastal areas. The fabric holds the soil in place while allowing water to drain through, preventing soil washout during heavy rainfall.
- Weed Prevention: Laying geotextile fabric under mulch or soil in garden beds or pathways helps prevent weeds from growing while allowing moisture and nutrients to pass through. This minimizes the need for harmful herbicides and reduces maintenance.
- Landscaping Beds: Geotextile fabric is a great choice for creating a separation layer between the soil and decorative stones, ensuring that the stones don’t sink into the soil over time.
2. Construction Projects
- Road and Railway Construction: Geotextile fabric is commonly used as a separation layer between the subgrade (earth layers) and the base materials (gravel or crushed stone). It helps distribute loads evenly, reduces the migration of soil particles into the gravel, and increases the longevity of roads and railways.
- Foundation Reinforcement: For buildings and other structures, geotextile fabric can be placed between the soil and foundation materials. This helps stabilize the soil, especially in areas with weak or expansive soil, by preventing shifting and settling that could lead to cracks or foundation failure.
- Retaining Walls: In the construction of retaining walls, geotextile fabric provides both separation and reinforcement. It helps prevent soil erosion behind the wall while also adding structural stability by preventing soil from migrating through the wall structure.
3. Drainage Systems
- French Drains: Geotextile fabric is essential in French drain systems, where it wraps around the drainage pipe to prevent the surrounding soil from clogging the system. It filters out fine particles while allowing water to pass freely into the pipe.
- Stormwater Management: In stormwater systems, geotextile fabric can be used to line swales, retention ponds, or any other stormwater detention system. It prevents soil particles from mixing with the water and clogging drainage paths, ensuring long-term performance.
4. Other Applications
- Landfills: Geotextile fabrics are commonly used in landfills to separate different layers and to filter water, preventing contamination and ensuring the integrity of the landfill’s structure.
- Golf Courses: Geotextile fabric is used in golf course construction, particularly for drainage systems under fairways or greens. It helps manage water flow and improves turf conditions by preventing waterlogging.
- Coastal Areas and Riverbanks: In areas where erosion from water is a major issue, such as riverbanks or coastal regions, geotextile fabrics can be used as part of a system to stabilize the soil and prevent washout.
How Do You Apply Geotextile Fabric? Step-by-Step Instructions
Now that we’ve covered the basics of geotextile fabric and its applications, let’s dive into how to apply geotextile fabric correctly. Proper installation is crucial to maximize the benefits of this material, ensuring long-term effectiveness in your projects. Here’s a step-by-step guide to help you through the process:
Step 1: Prepare the Area
Before you can lay down the geotextile fabric, the first task is to prepare the area where the fabric will be installed. Proper site preparation is critical to prevent damage to the fabric and ensure its optimal function.
Clear the Area of Debris and Vegetation
- Remove Weeds, Grass, and Roots: The area where the geotextile fabric will be installed needs to be free from any plant life, especially deep-rooted plants that can puncture the fabric. If you’re laying fabric in a garden bed or under mulch, ensure all vegetation is cleared.
- Remove Large Stones and Debris: Stones or other sharp objects could damage the fabric and hinder its effectiveness. Use a shovel, rake, or hoe to clear the area of rocks, roots, and other large debris.
- Tools Needed:
- Shovel or hoe
- Rake
- Gloves
Level the Ground (If Necessary)
- Level Uneven Surfaces: If the ground has significant dips or mounds, it’s essential to level it out before applying the geotextile fabric. Uneven ground can cause the fabric to shift or wrinkle over time, compromising its drainage or reinforcement properties.
- How to Level: Use a rake to spread soil evenly, and compact the ground as much as possible, particularly if you’re applying the fabric for reinforcement or road construction.
- Tools Needed:
- Leveling rake
- Tamper or roller for compacting soil
Step 2: Measure and Cut the Fabric
Once the area is prepped, you’ll need to measure and cut the geotextile fabric to the appropriate size. Accurate measurement is essential to avoid unnecessary waste and ensure full coverage.
Measure the Area Where Fabric Is Needed
- Get Accurate Measurements: Measure the length and width of the area where you’ll be laying the fabric. If you’re installing fabric for a drainage system, measure the length of the trench. If you’re covering a larger surface like a garden bed or roadway, measure the entire area where fabric will be placed.
- Add Extra Length for Overlap: Geotextile fabric is often sold in rolls, so make sure you purchase enough fabric to overlap the edges. A typical overlap should be at least 12 inches (30 cm) but may vary depending on the application.
Cut the Fabric
- Cut the Fabric to Size: Using a pair of scissors or a utility knife, carefully cut the fabric to the appropriate size, ensuring it fits the measured area. Be careful not to damage the fabric’s integrity while cutting.
- Tools Needed:
- Scissors or utility knife
- Measuring tape or ruler
Step 3: Lay Down the Geotextile Fabric
With your fabric cut to size, it’s time to lay it down. The key here is to unroll the fabric properly to avoid wrinkles, folds, or damage.
Position the Fabric
- Unroll Carefully: Starting at one end of your project area, unroll the geotextile fabric. As you unroll it, be mindful of keeping it smooth. Avoid letting it fold or crease, as this can cause gaps or affect its performance.
- Overlap Edges: To ensure proper coverage and prevent soil migration, overlap the fabric at the seams. A 12-inch overlap is a good starting point, but more overlap may be needed in high-traffic or high-water areas.
- Position Correctly: If you’re using the fabric for drainage, ensure that the fabric is laid with the proper orientation. For filtration applications, the fabric should face the soil to filter particles while letting water pass through.
Common Mistakes to Avoid
- Incorrect Orientation: If you’re using a woven fabric for drainage, ensure that the drainage side (typically the side with larger pores) is facing the soil. If you’re using non-woven fabric, the smooth side should face upward to prevent clogging.
- Wrinkles and Folds: Fabric that is bunched or wrinkled may lead to gaps in coverage, which reduces its effectiveness in separation or drainage.
Step 4: Secure the Fabric in Place
Once the fabric is properly positioned, it’s crucial to secure it so it doesn’t shift during the remainder of the project. This step ensures that the fabric stays in place over time, even when exposed to wind or foot traffic.
Using Stakes or Pins
- Stake the Fabric Down: Use landscape fabric pins or stakes to secure the geotextile fabric in place. These stakes are usually made of metal or plastic and are designed to hold the fabric down without puncturing it. Push the pins down into the fabric and ground about every 3–4 feet (1 meter), or more in areas with strong winds or high foot traffic.
- Stake at Overlap Areas: Be sure to secure the areas where the fabric overlaps. This is crucial to prevent the fabric from separating and ensuring that soil and other materials stay in place.
Tacking Down the Fabric
- Avoid Puncturing: When tacking the fabric down, ensure that you do not puncture it too aggressively. You want to secure it, but excessive tacking or the wrong tools could damage the fabric, rendering it ineffective.
- Tools Needed:
- Landscape fabric pins or stakes
- Hammer (if using pins or stakes)
- Optional: String or twine (to keep fabric straight)
Step 5: Cover the Fabric (If Necessary)
Depending on the application, you may need to cover the fabric with a layer of soil, gravel, mulch, or other materials to protect it and enhance its functionality. This step is particularly important for drainage or erosion control projects.
Adding Gravel, Soil, or Other Layers
- Protect the Fabric: In landscaping or road construction, you may need to cover the fabric with a layer of gravel, soil, or other materials. The thickness of the covering material will depend on your specific needs, but a minimum of 2–4 inches of gravel or soil is typically required.
- Ensure Proper Drainage: If you’re using geotextile fabric in a drainage system, make sure that the covering material does not compact too much, as it could hinder the fabric’s ability to filter water properly.
- Tools Needed:
- Shovel or wheelbarrow
- Rake to spread the covering evenly
- Tamper for compacting soil if necessary
Creating an Even Layer
- Smooth and Compact: After placing the covering material, ensure that it is evenly distributed and compacted (if necessary). This helps the fabric stay in place and ensures that it will function as expected for the duration of the project.
What Are the Common Mistakes to Avoid When Applying Geotextile Fabric?
While applying geotextile fabric is relatively straightforward, it’s easy to make mistakes that can reduce its effectiveness. These errors can compromise the overall integrity of your project and lead to issues like poor drainage, soil erosion, or even fabric failure. Here’s a look at some of the most common mistakes to avoid when applying geotextile fabric:
1. Not Preparing the Ground Properly
One of the most critical steps in applying geotextile fabric is preparing the area correctly. Failing to clear the ground of vegetation, debris, and large stones can lead to several problems:
- Damage to the Fabric: Sharp rocks or tree roots can puncture or tear the fabric, reducing its ability to filter water and perform its function.
- Improper Fabric Function: Uneven surfaces can cause the fabric to bunch or shift over time, creating gaps where water or soil can migrate.
How to Avoid It:
- Thoroughly Clear the Area: Use a shovel, hoe, or rake to remove any plants, roots, or debris. This ensures that the fabric lies flat and unimpeded.
- Level the Surface: If the ground is uneven, use a rake or tamper to level it out, ensuring a smooth and stable base for the fabric.
2. Incorrect Fabric Overlap
When laying geotextile fabric, ensuring proper overlap at the seams is crucial. If the edges of the fabric aren’t overlapped correctly, soil or other materials can seep through the gaps, diminishing the fabric’s separation, filtration, or reinforcement capabilities.
- Too Little Overlap: If the fabric overlaps by less than 12 inches (30 cm), soil can slip through the edges and compromise the fabric’s performance.
- Excessive Overlap: While too little overlap is problematic, having too much overlap can lead to unnecessary material waste and can make the installation process harder.
How to Avoid It:
- Use the Right Overlap: Ensure that the fabric edges overlap by at least 12 inches, depending on the type of project and the size of the area.
- Check for Gaps: After installation, walk around the fabric to make sure there are no visible gaps between sections.
3. Using the Wrong Type of Fabric
Geotextile fabric comes in different types, each designed for specific applications. Using the wrong type for your project can lead to ineffective drainage, poor soil separation, or inadequate reinforcement.
- Woven Fabrics for Filtration: Woven fabrics have limited permeability, making them unsuitable for applications requiring high water flow (e.g., drainage or filtration).
- Non-Woven Fabrics for Reinforcement: Non-woven fabrics are more permeable but not as strong as woven fabrics, making them unsuitable for applications that require high tensile strength (e.g., heavy-duty reinforcement).
How to Avoid It:
- Choose the Right Fabric for Your Project: Always check the manufacturer’s guidelines to ensure you’re using the right type of fabric. For drainage, use non-woven fabric, and for reinforcement, choose woven fabric.
- Ask for Professional Advice: If you’re unsure about which fabric to use, it’s always a good idea to consult a professional or supplier to recommend the best fabric for your needs.
4. Failing to Secure the Fabric Properly
Even after you’ve laid the fabric correctly, failing to secure it can cause it to shift, bunch, or become damaged during installation. This is particularly problematic in areas with high foot traffic, vehicles, or strong winds.
- Fabric Shifting: If the fabric is not staked or pinned properly, it may move out of place, especially when adding gravel or soil on top.
- Tearing During Handling: Improper securing can lead to accidental tears when covering the fabric with other materials.
How to Avoid It:
- Use Adequate Pinning or Staking: Be sure to use enough landscape fabric pins or stakes to secure the fabric, spaced about every 3–4 feet (1 meter). For high-wind areas, increase the number of pins or use larger stakes.
- Ensure Fabric Stays Taut: As you lay the fabric, make sure it’s smooth and taut. Use pins to hold it in place until you cover it with your desired materials.
5. Overlooking the Importance of Covering the Fabric
While some applications may not require immediate covering, in many cases, geotextile fabric should be covered with soil, gravel, or mulch to protect it from the elements and improve its functionality. Failing to do so can expose the fabric to damage and reduce its effectiveness.
- UV Exposure: Geotextile fabrics, particularly non-woven ones, can degrade when exposed to UV light. Without covering, the fabric can become brittle and lose its strength over time.
- Erosion or Sediment Accumulation: If the fabric is left uncovered in areas prone to rain or wind, soil and other materials may wash away, causing the fabric to become exposed and ineffective.
How to Avoid It:
- Cover the Fabric After Installation: Once the fabric is laid down and secured, cover it with the appropriate material as soon as possible. For drainage applications, ensure there is enough gravel or soil to protect it.
- Check for Proper Coverage: Ensure that the covering is uniform and deep enough to protect the fabric but still allows it to function as needed.
6. Not Accounting for Future Expansion or Movement
Soil or base materials can shift or expand over time due to environmental conditions (e.g., temperature fluctuations, heavy rainfall). If you don’t leave room for movement, the fabric may become stressed or displaced, reducing its long-term effectiveness.
How to Avoid It:
- Allow for Expansion: Leave a little extra material at the edges of the fabric to accommodate for potential shifts in the soil or base materials.
- Secure the Edges: Use pins or stakes to anchor the fabric around the edges to prevent it from shifting.
Common Mistakes to Avoid :
| Mistake | How to Avoid It |
|---|---|
| Not Preparing the Ground Properly | Clear debris, level the surface, and remove large stones and roots. |
| Incorrect Fabric Overlap | Ensure a 12-inch overlap between fabric edges. |
| Using the Wrong Type of Fabric | Choose the appropriate fabric based on the project’s needs (woven vs. non-woven). |
| Failing to Secure the Fabric Properly | Use enough landscape pins or stakes and ensure the fabric stays taut. |
| Overlooking the Importance of Covering | Always cover the fabric with the appropriate material (soil, gravel, mulch). |
| Not Accounting for Future Movement | Allow for fabric expansion and secure edges to prevent displacement. |
By avoiding these common mistakes, you can ensure that your geotextile fabric performs its intended functions, whether it’s for drainage, reinforcement, or erosion control. A little extra care during installation can save you a lot of time and effort in the long run.
