Understanding Geotextile Membranes

Before diving into how to lay a geotextile membrane, it’s essential to have a solid understanding of what geotextile membranes are, the different types available, their various applications, and the benefits they offer. This foundational knowledge will help you make informed decisions and ensure that you choose the right membrane for your specific project needs.

Types of Geotextile Membranes

Geotextile membranes come in various types, each designed to fulfill specific functions within a project. Understanding the differences between these types is crucial for selecting the appropriate membrane for your application.

1. Woven Geotextiles

• Construction: Made by interlacing fibers in a grid-like pattern.
• Characteristics: High tensile strength, durability, and resistance to tearing.
• Best For: Applications requiring significant reinforcement, such as road construction and retaining walls.
• Advantages:
  • Excellent load-bearing capacity.
  • Long-lasting and resistant to degradation.
• Disadvantages:
  • Generally less permeable than non-woven types.

2. Non-Woven Geotextiles

• Construction: Created through processes like needle-punching or heat-fusing fibers together without weaving.
• Characteristics: Highly permeable, excellent filtration and drainage capabilities.
• Best For: Drainage systems, soil separation, and erosion control.
• Advantages:
  • Superior water flow and drainage.
  • Flexible and easy to handle.
• Disadvantages:
  • Lower tensile strength compared to woven geotextiles.

3. Biodegradable Geotextiles

• Construction: Made from natural fibers or biodegradable synthetic materials.
• Characteristics: Designed to break down over time, typically within a few months to a few years.
• Best For: Temporary applications like erosion control during construction or landscaping projects.
• Advantages:
  • Environmentally friendly and reduces long-term waste.
  • Provides temporary stabilization without permanent alteration of the site.
• Disadvantages:
  • Limited lifespan; not suitable for permanent structures.

4. Synthetic Geotextiles

• Construction: Manufactured from synthetic polymers such as polypropylene or polyester.
• Characteristics: Durable, resistant to chemical and biological degradation.
• Best For: Permanent installations in roads, retaining walls, and drainage systems.
• Advantages:
  • Long-lasting and reliable performance.
  • Versatile and available in various specifications.
• Disadvantages:
  • Higher cost compared to some natural alternatives.

5. Permeable vs. Impermeable Membranes

• Permeable Geotextiles: Allow water to pass through while retaining soil particles. Ideal for drainage and filtration applications.
• Impermeable Geotextiles: Prevent water from passing through, used in applications where water containment is required, such as landfill liners.

Applications of Geotextile Membranes

Geotextile membranes are incredibly versatile and find applications across various industries. Here are some of the primary uses:

1. Road Construction

• Purpose: Acts as a stabilizing layer between the subgrade and the aggregate base, enhancing load distribution and prolonging pavement life.
• Benefits:
  • Reduces rutting and deformation.
  • Prevents mixing of subgrade soil with aggregate layers.

2. Drainage Systems

• Purpose: Facilitates the movement of water while preventing soil migration, essential for maintaining effective drainage.
• Benefits:
  • Prevents waterlogging in areas with poor drainage.
  • Enhances the efficiency of drainage systems by ensuring unobstructed water flow.

3. Erosion Control

• Purpose: Stabilizes soil on slopes, riverbanks, and other vulnerable areas to prevent erosion caused by water or wind.
• Benefits:
  • Protects landscapes from soil loss.
  • Maintains the integrity of natural and constructed slopes.

4. Landscaping and Gardening

• Purpose: Separates soil layers in garden beds, prevents weed growth, and enhances drainage in landscaped areas.
• Benefits:
  • Maintains soil composition and structure.
  • Reduces maintenance by minimizing weed proliferation.

5. Retaining Walls

• Purpose: Reinforces the soil behind retaining walls, enhancing their stability and load-bearing capacity.
• Benefits:
  • Prevents soil displacement and wall failure.
  • Extends the lifespan of retaining structures.

6. Landfills

• Purpose: Acts as a barrier to prevent leachate from contaminating surrounding soil and groundwater.
• Benefits:
  • Ensures environmental protection by containing waste materials.
  • Maintains regulatory compliance for landfill operations.

Benefits of Using Geotextile Membranes

Incorporating a geotextile membrane into your project offers numerous advantages that contribute to the overall success and longevity of your construction or landscaping efforts.

1. Enhances Soil Stability

Geotextile membranes reinforce the soil, improving its load-bearing capacity and preventing deformation under heavy loads. This is particularly beneficial in applications like road construction and retaining walls, where soil stability is paramount.

2. Improves Drainage

One of the primary functions of a geotextile membrane is to facilitate efficient water drainage. By allowing water to pass through while retaining soil particles, geotextiles prevent waterlogging and reduce the risk of structural damage caused by excess moisture.

3. Prevents Mixing of Different Soil Layers

In projects where different soil types are used, geotextile membranes act as a barrier to prevent the mixing of these layers. This separation maintains the integrity and functionality of each soil layer, ensuring optimal performance of the overall system.

4. Increases Lifespan of Structures

By stabilizing the soil and enhancing drainage, geotextile membranes contribute to the longevity of structures like roads, retaining walls, and drainage systems. This reduces maintenance costs and extends the service life of your investments.

5. Reduces Maintenance Requirements

Geotextiles help minimize issues like erosion, soil displacement, and waterlogging, which can lead to frequent maintenance. By addressing these problems proactively, geotextile membranes save time and resources in the long run.

6. Environmentally Friendly Options

Biodegradable geotextiles offer an eco-friendly solution for temporary applications, reducing the environmental impact compared to traditional materials. Additionally, geotextiles contribute to sustainable construction practices by enhancing the efficiency and durability of projects.

Types of Geotextile Membranes

Type	Construction	Characteristics	Best For	Advantages	Disadvantages
Woven Geotextiles	Interlaced fibers	High tensile strength, durable	Road construction, retaining walls	Excellent load-bearing capacity	Less permeable than non-woven types
Non-Woven Geotextiles	Needle-punched or heat-fused fibers	Highly permeable, excellent drainage	Drainage systems, erosion control	Superior water flow and flexibility	Lower tensile strength
Biodegradable Geotextiles	Natural or biodegradable synthetics	Designed to break down over time	Temporary erosion control	Environmentally friendly	Limited lifespan
Synthetic Geotextiles	Synthetic polymers (e.g., polypropylene)	Durable, resistant to degradation	Permanent installations (roads, retaining walls)	Long-lasting, versatile	Higher cost
Permeable Membranes	Varies	Allows water to pass through	Drainage and filtration	Efficient water flow	May not be suitable for containment
Impermeable Membranes	Varies	Prevents water from passing through	Landfill liners, water containment	Effective water barrier	Limited permeability

By understanding the different types of geotextile membranes and their specific applications, you can make informed decisions that align with your project’s requirements. This knowledge ensures that you select the most suitable membrane, paving the way for a successful and durable installation.

Preparing to Lay a Geotextile Membrane

Before you begin how to lay a geotextile membrane, thorough preparation is essential to ensure a successful and durable installation. Proper planning, gathering the right tools and materials, and adhering to safety precautions will set the foundation for your project, whether it’s a small landscaping task or a large-scale construction endeavor.

Planning Your Project

Effective project planning is the cornerstone of any successful installation of a geotextile membrane. This phase involves assessing the project site, determining the scope of work, and outlining the steps necessary to achieve your objectives.

Assessing the Area and Determining Membrane Size

1. Site Evaluation:
   • Topography: Examine the land’s slope and contour. Steeper slopes may require additional stabilization measures.
   • Soil Type: Different soils have varying drainage and load-bearing capacities. Conducting a soil test can help determine the appropriate type of geotextile membrane.
   • Existing Vegetation: Identify and remove any vegetation that could interfere with the membrane installation.
2. Measuring the Area:
   • Accurate Measurements: Use a measuring tape or a laser distance measurer to determine the exact dimensions of the area where the membrane will be installed.
   • Allowances for Overlaps: Plan for at least 6 to 12 inches of overlap between membrane rolls to ensure complete coverage and prevent gaps.
3. Calculating Membrane Requirements:
   • Total Area Calculation: Multiply the length by the width of the installation area to find the total square footage needed.
   • Additional Material for Overlaps and Waste: Add an extra 10-15% to your total area to account for overlaps, cuts, and potential errors.

Understanding Site Conditions

1. Soil Type:
   • Clay Soils: Retain water well but can be prone to cracking. Suitable for certain geotextile applications.
   • Sandy Soils: Drain quickly but may lack cohesion. Geotextiles can help stabilize these soils.
   • Loamy Soils: Offer a balance of drainage and nutrient retention, ideal for many landscaping projects.
2. Slope and Drainage:
   • Steep Slopes: Require robust geotextile membranes to prevent soil erosion and ensure stability.
   • Flat Areas: Focus on effective drainage solutions to avoid waterlogging.
3. Moisture Levels:
   • High Moisture: Choose permeable geotextiles that allow water to pass through while retaining soil particles.
   • Low Moisture: Impermeable membranes may be more appropriate to prevent any unwanted water movement.

Gathering Necessary Tools and Materials

Having all the necessary tools and materials on hand before you start laying a geotextile membrane will streamline the installation process and reduce the likelihood of interruptions.

Essential Tools

1. Utility Knife:
   • For cutting the geotextile membrane to the required dimensions with precision.
2. Measuring Tape or Laser Measure:
   • Ensures accurate measurement of the installation area and membrane sizing.
3. Stakes and Hammer:
   • Used to secure the membrane in place, preventing it from shifting during installation.
4. Landscape Staples or Pins:
   • Essential for anchoring the membrane to the ground, especially in windy conditions.
5. Roller or Heavy Object:
   • Helps to smooth out wrinkles and ensure the membrane lies flat against the surface.
6. Gloves:
   • Protect your hands from rough materials and sharp objects during installation.
7. Scissors:
   • Useful for making precise cuts, especially in tight or intricate areas.

Materials Needed

1. Geotextile Membrane Rolls:
   • The primary material for your project. Choose the type that best suits your application based on the site assessment.
2. Landscape Staples or Pins:
   • To secure the membrane firmly to the ground.
3. Adhesive or Tape:
   • Provides additional security for membrane seams, ensuring a watertight and stable installation.
4. Protective Sheeting (Optional):
   • Used in areas where extra protection is needed, such as under heavy machinery or in high-traffic zones.
5. Edge Restraints (Optional):
   • Helps to keep the membrane in place, especially along the borders of the installation area.

Safety Precautions

Safety should always be a top priority when undertaking any installation project. Proper safety measures will protect you from potential injuries and ensure a smooth workflow.

Personal Protective Equipment (PPE)

1. Gloves:
   • Protect your hands from abrasions, cuts, and exposure to chemicals if using adhesive.
2. Safety Glasses:
   • Shield your eyes from debris, especially when cutting the membrane.
3. Protective Footwear:
   • Wear sturdy boots to safeguard your feet from sharp objects and uneven terrain.
4. High-Visibility Vest (If Applicable):
   • Essential for projects near roadways or in areas with vehicular traffic.

Safe Handling and Storage of Materials

1. Handling the Membrane:
   • Avoid dragging the membrane across rough surfaces to prevent tearing.
   • Unroll carefully to prevent wrinkles and damage.
2. Storing Materials:
   • Keep geotextile membranes in a cool, dry place away from direct sunlight to prevent degradation.
   • Ensure that tools are stored safely to avoid accidents.
3. Using Adhesives Safely:
   • Follow manufacturer instructions for application.
   • Use in well-ventilated areas to avoid inhaling fumes.
   • Keep adhesives away from open flames and heat sources.

Environmental Considerations

1. Weather Conditions:
   • Avoid installing geotextile membranes in extreme weather conditions such as heavy rain or intense heat, which can affect the installation quality.
2. Site Cleanliness:
   • Remove all sharp objects, debris, and vegetation that could damage the membrane during installation.
3. Minimizing Environmental Impact:
   • Dispose of any waste materials responsibly.
   • Use biodegradable geotextiles when possible to reduce environmental footprint.

Preparing to Lay a Geotextile Membrane

Task	Details
Assess the Area	Evaluate topography, soil type, existing vegetation.
Measure the Installation Area	Accurately measure dimensions and calculate required membrane size.
Understand Site Conditions	Analyze soil type, slope, drainage, and moisture levels.
Gather Tools	Utility knife, measuring tape, stakes, landscape staples, gloves, etc.
Gather Materials	Geotextile membrane rolls, adhesive, protective sheeting, edge restraints.
Ensure Safety	Wear appropriate PPE, handle materials safely, store tools properly.
Consider Environmental Factors	Plan for weather conditions, maintain site cleanliness, minimize impact.

By meticulously planning your project, gathering all necessary tools and materials, and adhering to safety precautions, you set the stage for a seamless geotextile membrane installation. Proper preparation not only enhances the efficiency of the installation process but also ensures the longevity and effectiveness of the membrane in fulfilling its intended functions.

Step-by-Step Guide to Laying a Geotextile Membrane

Now that you’ve thoroughly prepared for your geotextile membrane installation, it’s time to dive into the practical aspects of how to lay a geotextile membrane. This step-by-step guide will walk you through each phase of the installation process, ensuring that your membrane is laid correctly for optimal performance and longevity. Whether you’re a DIY enthusiast or a professional contractor, following these detailed steps will help you achieve a successful installation.

Step 1 – Site Preparation

Proper site preparation is crucial for the effective installation of a geotextile membrane. This initial step ensures that the membrane has a clean, stable surface to adhere to, which is essential for its functionality and durability.

Clearing the Area

• Remove Debris: Start by clearing the installation area of any debris, such as rocks, sticks, and other sharp objects that could damage the membrane. Use a rake or shovel to ensure the ground is smooth and free from obstructions.
• Eliminate Vegetation: Remove all vegetation, including grass, roots, and weeds. This can be done manually or with the use of a herbicide, depending on the size of the area and the type of vegetation present.
• Level the Surface: Ensure the ground is level or graded appropriately to facilitate proper drainage. Use a grading tool or a straightedge to check for uneven spots and make necessary adjustments.

Grading the Surface

• Slope Considerations: If your project involves slopes, grade the surface to promote effective water runoff. A gentle slope (typically 2-5%) is ideal for most applications, reducing the risk of water pooling and membrane displacement.
• Compacting the Soil: Compact the soil to create a stable base for the membrane. Use a plate compactor or hand tamper to achieve a firm surface, which helps prevent the membrane from shifting or wrinkling over time.
• Ensuring Proper Drainage: Incorporate drainage solutions, such as French drains or gravel layers, if necessary. Proper drainage is essential to prevent water accumulation, which can compromise the membrane’s effectiveness.

Removing Sharp Objects

• Inspect the Area: Conduct a thorough inspection of the site to identify and remove any sharp objects that could puncture the membrane during installation.
• Use Protective Coverings: In areas where sharp objects cannot be entirely removed, consider using protective coverings or barriers to shield the membrane from potential damage.

Step 2 – Measuring and Cutting the Membrane

Accurate measurement and cutting of the geotextile membrane are vital to ensure complete coverage and effective performance. This step minimizes material waste and ensures that the membrane fits seamlessly into your project area.

Accurate Measurement Techniques

• Measure Twice, Cut Once: Double-check all measurements to avoid errors. Use a measuring tape or a laser measure for precision.
• Marking the Area: Clearly mark the boundaries of the installation area using stakes and string or spray paint. This helps in visualizing the layout and ensures that the membrane is cut to the correct dimensions.

Cutting the Membrane to Fit

• Use a Sharp Utility Knife: A sharp utility knife ensures clean, straight cuts without fraying the edges of the membrane.
• Cut in a Controlled Environment: Lay the membrane flat on a smooth surface and cut it away from any rough edges or objects that could cause uneven cuts.
• Creating Overlaps: When cutting multiple pieces, ensure that each piece has an adequate overlap (typically 6 to 12 inches) with adjacent sections. This overlap is crucial for maintaining a continuous barrier and preventing gaps where soil or water could pass through.

Handling Corners and Edges

• Smooth Corners: When cutting around corners or irregular shapes, take your time to create smooth, even edges. Jagged or uneven cuts can lead to weak points in the membrane.
• Using Templates: For complex shapes, consider using a template or stencil to guide your cuts, ensuring consistency and accuracy.

Step 3 – Laying the Membrane

With your site prepared and the membrane accurately measured and cut, it’s time to lay the geotextile membrane. This step requires careful handling to ensure that the membrane covers the entire area without wrinkles or gaps.

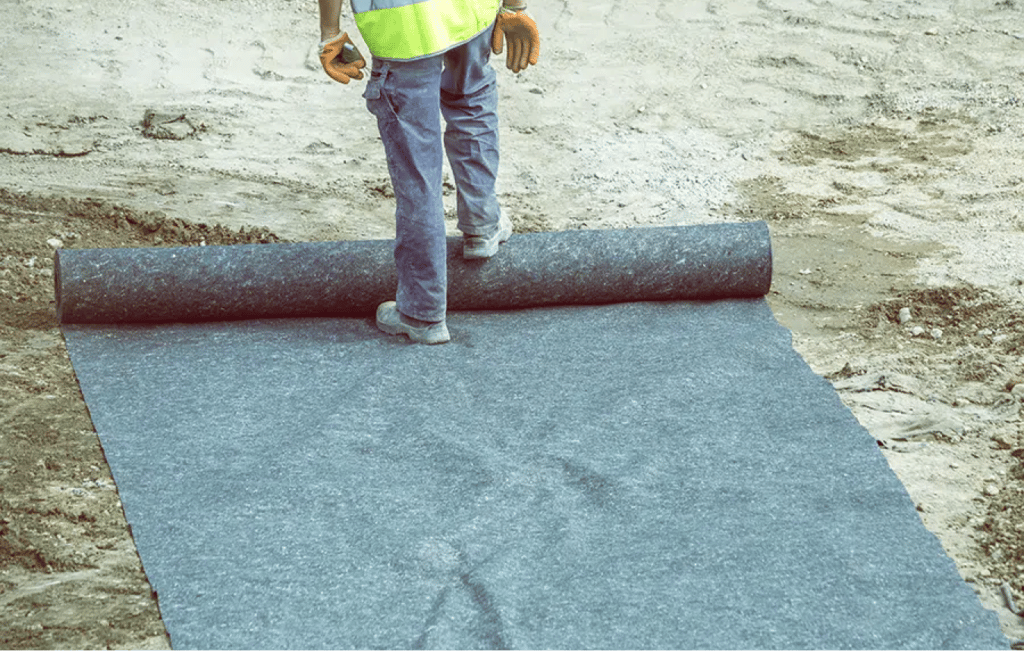

Unrolling the Geotextile Membrane Evenly

• Start at a Corner: Begin unrolling the membrane from one corner of the installation area, laying it out in a straight line to maintain alignment.
• Smooth Out Wrinkles: As you unroll, use a roller or a heavy object to press the membrane flat against the ground, eliminating any wrinkles or air pockets.
• Maintain Tension: Ensure that the membrane is taut but not stretched, as excessive tension can cause tears or distortions.

Overlapping Seams to Prevent Gaps

• Consistent Overlaps: When laying multiple pieces of membrane, overlap each seam by at least 6 to 12 inches. This overlap is essential for creating a continuous barrier that prevents soil and water from seeping through.
• Staggered Seams: For larger installations, stagger the seams in a brick-like pattern to enhance the membrane’s stability and reduce the risk of shifting.

Ensuring the Membrane Covers the Entire Area Without Wrinkles

• Work Slowly: Lay the membrane slowly and methodically, ensuring each section aligns perfectly with the previous one.
• Use Rollers: Utilize rollers or heavy objects to press the membrane firmly into place, smoothing out any wrinkles as you go.
• Check Alignment: Periodically step back and inspect the membrane layout to ensure it remains aligned and free from distortions.

Step 4 – Securing the Membrane

Securing the geotextile membrane firmly to the ground is essential to prevent movement, especially in areas with high winds or heavy traffic. Proper anchoring ensures the membrane maintains its position and continues to perform its intended functions effectively.

Using Landscape Staples or Pins

• Even Spacing: Place landscape staples or pins every 6 to 12 inches along the perimeter and across the membrane’s surface to keep it securely in place.
• Staking Techniques: Drive the staples or pins into the ground at a slight angle to ensure they hold firmly. Avoid placing them too close together, as this can damage the membrane.

Applying Adhesive or Tape for Added Security

• Sealing Seams: Use a compatible adhesive or geotextile tape to seal the overlaps and seams between membrane sections. This additional step ensures a watertight and robust barrier.
• Reinforcing Critical Areas: Apply adhesive or tape in areas prone to high stress or movement, such as corners or edges, to enhance the membrane’s stability.

Ensuring the Membrane is Firmly Anchored

• Check Tension: After securing, ensure the membrane is taut and firmly anchored without any slack that could lead to shifting or wrinkling.
• Reinforce Weak Spots: Identify and reinforce any areas that appear loose or poorly secured, adding extra staples or adhesive as needed.

Step 5 – Trimming Excess Material

Once the membrane is laid and secured, trimming any excess material ensures a neat and professional finish. This step also helps in preventing the membrane from extending beyond the intended area, which could cause unnecessary overlaps or exposure to environmental elements.

Cutting Away Any Excess Membrane for a Clean Finish

• Use Sharp Tools: Utilize a sharp utility knife or scissors to trim the excess membrane accurately along the marked boundaries.
• Follow the Edge: Carefully follow the edge of the installation area to ensure a precise cut without damaging the secured sections.

Ensuring Edges are Properly Secured to Prevent Movement

• Reinforce Edges: After trimming, double-check that the edges are securely fastened with landscape staples or adhesive to prevent any lifting or movement.
• Edge Binding: In some cases, using edge restraints or additional adhesive can provide extra security, especially in areas exposed to high winds or heavy rainfall.

Step 6 – Final Inspection

A thorough final inspection is the last step in the geotextile membrane installation process. This ensures that the membrane is correctly installed, free from defects, and ready to perform its intended functions effectively.

Checking for Any Gaps, Wrinkles, or Unsecured Areas

• Visual Inspection: Walk around the entire installation area, carefully examining the membrane for any visible gaps, wrinkles, or areas that are not firmly secured.
• Use a Flashlight: In low-light conditions, use a flashlight to inspect the seams and edges more closely, ensuring no hidden issues exist.

Making Necessary Adjustments to Ensure Optimal Performance

• Fixing Gaps: If any gaps are found, reposition the membrane and secure the area with additional staples or adhesive to eliminate the openings.
• Smoothing Wrinkles: Use a roller or heavy object to press out any remaining wrinkles, ensuring the membrane lies flat and evenly across the surface.
• Reinforcing Seams: Apply extra adhesive or tape to seams that appear weak or insufficiently sealed, enhancing the membrane’s overall integrity.

Documenting the Installation for Future Reference

• Photograph the Installation: Take photos of the completed installation for future reference, maintenance, or warranty purposes.
• Record Measurements and Materials: Keep a record of the membrane dimensions, overlap areas, and materials used. This information can be valuable for future projects or repairs.

Case Study: Successful Geotextile Membrane Installation

To illustrate the effectiveness of following a structured geotextile membrane installation process, consider the following case study:

Project Overview

A residential homeowner sought to improve drainage and prevent soil erosion in their backyard garden, which featured a gently sloping terrain prone to waterlogging during heavy rains.

Installation Process

1. Site Preparation: The area was cleared of vegetation and debris. The soil was graded to create a gentle slope, ensuring proper water runoff.
2. Measuring and Cutting: The installation area measured 50 feet by 30 feet. The geotextile membrane was cut into three sections, each overlapping by 8 inches.
3. Laying the Membrane: The membrane was unrolled carefully, with each section aligned and smoothed to eliminate wrinkles.
4. Securing the Membrane: Landscape staples were placed every 6 inches along the perimeter and across the membrane. Seams were sealed with geotextile tape.
5. Trimming Excess Material: Any excess membrane was trimmed along the garden boundaries, and the edges were reinforced with additional staples.
6. Final Inspection: A thorough inspection confirmed that the membrane was free of gaps and securely anchored.

Outcome

The installation successfully improved drainage, preventing water accumulation and reducing soil erosion. The homeowner reported a noticeable improvement in garden health and a reduction in maintenance efforts related to soil stabilization.

Step-by-Step Installation Process

Step	Actions	Tools/Materials Needed
1. Site Preparation	– Clear debris and vegetation – Grade the surface – Remove sharp objects	Rake, shovel, plate compactor, gloves
2. Measuring and Cutting	– Measure installation area – Cut membrane with utility knife – Plan overlaps	Measuring tape, utility knife, scissors
3. Laying the Membrane	– Unroll membrane evenly – Overlap seams – Smooth out wrinkles	Roller or heavy object, landscape staples
4. Securing the Membrane	– Anchor with landscape staples – Apply adhesive/tape – Ensure membrane is taut	Landscape staples, adhesive/geotextile tape
5. Trimming Excess Material	– Trim excess membrane – Secure edges	Utility knife, scissors, landscape staples
6. Final Inspection	– Inspect for gaps and wrinkles – Make adjustments – Document installation	Flashlight, camera, notes

By meticulously following these step-by-step instructions, you can ensure a successful and durable geotextile membrane installation. Proper execution of each phase not only enhances the membrane’s effectiveness but also contributes to the overall stability and longevity of your construction or landscaping project.
